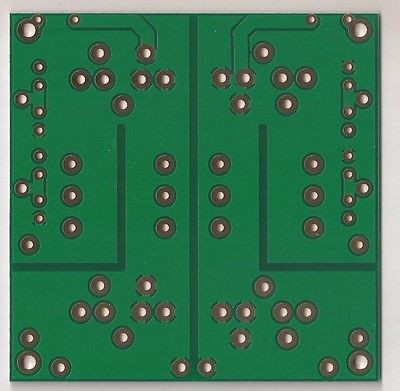

Dual-mono CRC single rail power supply board for 5W CAMP & PLH 1 piece !!

Write a Review

Brand:
Unbranded/Generic
MPN:
Does Not Apply
$13.99

This is a dual-mono single rail power supply board designed for OTL class A amplifier. The board consists of two individual rectification and filtering circuitry using C-R-C topology. The board can be mounted with four pieces of discrete high speed diodes, such as the good sounding MUR860, in bridge mode on each side.


We provide schematic to buyers by EMAIL.


PCB thickness : 1.6mm

Board Dimension : 100mm x 100mm

Copper thickness : 2 ounce copper ( 70um !) plus gold plated surface for high current.

The assembled board picture is for reference only. This listing is for one piece of bare board.

We do air shipping worldwide at US$5.50.
