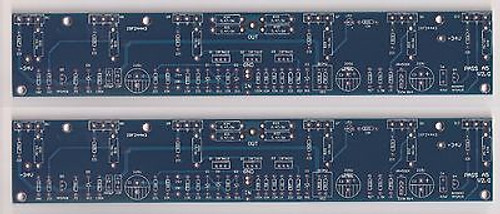

Aleph 5 60W Mosfet Pure Class A SE amplifier PCB 2 pieces

Write a Review

Does Not Apply

This listing is two pieces of bare PCBs of a pure class A MOSFET amplifier, output power 60W at 8 ohms loading. The design is based on ALEPH 5.

This is another board incarnation of this well proven amplifier. For those who want the boards to be mirror arranged, please check "60W MOSFET Pure Class A SE amplifier PCB stereo pair !" in our shop.

The design features single-ended MOSFET class A output, loaded with constant current source for excellent linearity and dynamic performance. Using 6 pieces of power MOSFETs, 3 pieces as output and 3 pieces as current source, the amplifier can offer 60W of uncompromised class A power.


The boards are fabricated with 2.0mm thick fibre glass(FR4) , super thick copper and double sided solder resist coating for best reliability and durability.

PCB dimension : 280mm x 48mm ( each channel).


PCB thickness : 2.0mm.

Copper thickness : 75um -- FOUR times normal process of copper thickness.


Tin plated surface.


We provide schematic and part list to buyers by EMAIL( to be attached with the shipment notice).
