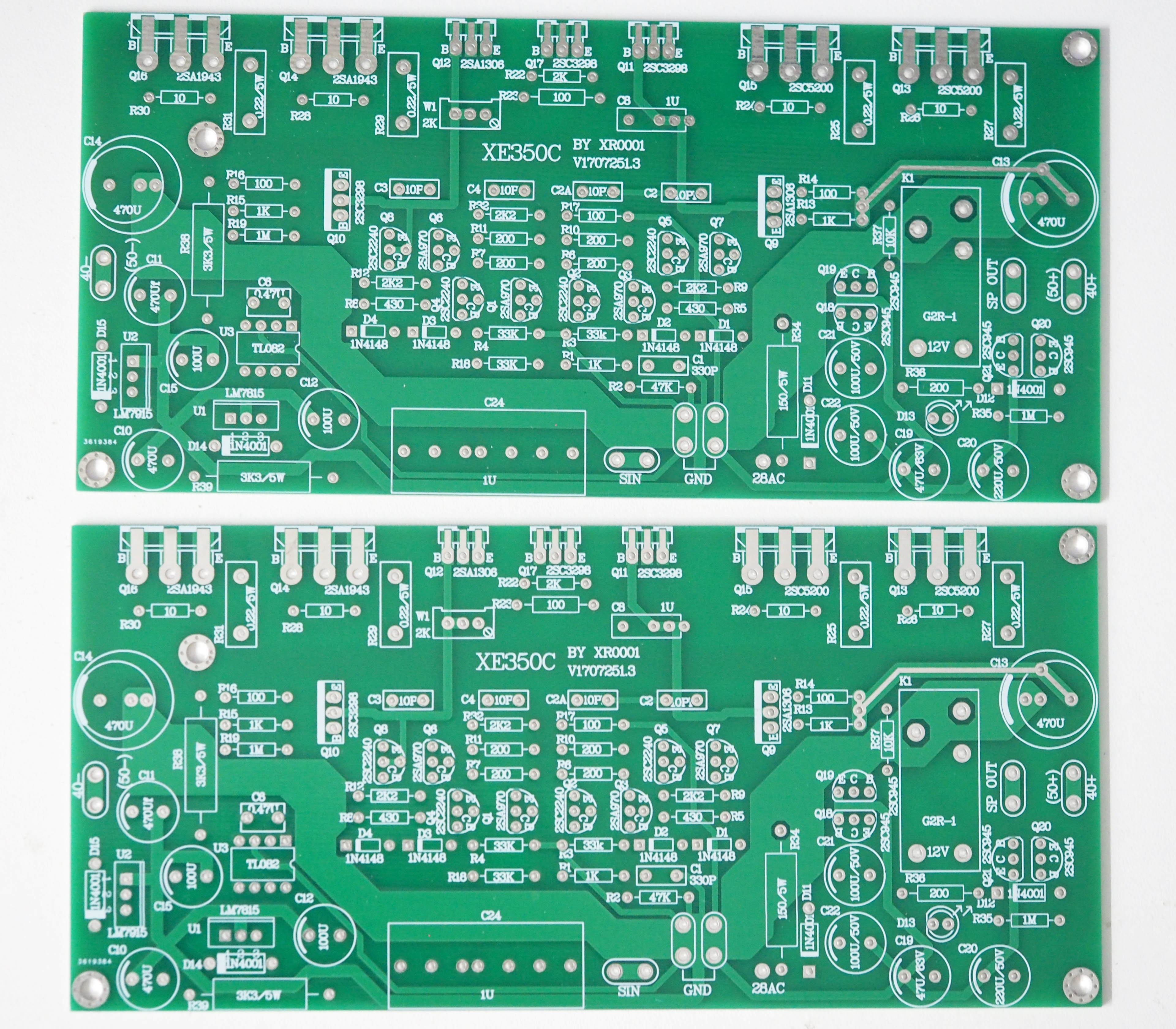

This is one set of two PCBs that can form a stereo power amplifier. The circuit is with reference to power amplifier section of Accuphase E-350 integrated amplifier. E-350 is one of the most successful and welcome integrated amplifier for its refined, detailed and musical performance. We modified the circuit a little bit to make it more suitable for diy purpose. The circuit has equipped with speaker protection circuitry.
PCB thickness 1.6mm. Dimension : 170mm x 83mm Operating voltage : DC input +/-40V to +/-50V.
Output Power : 80Wrms per channel

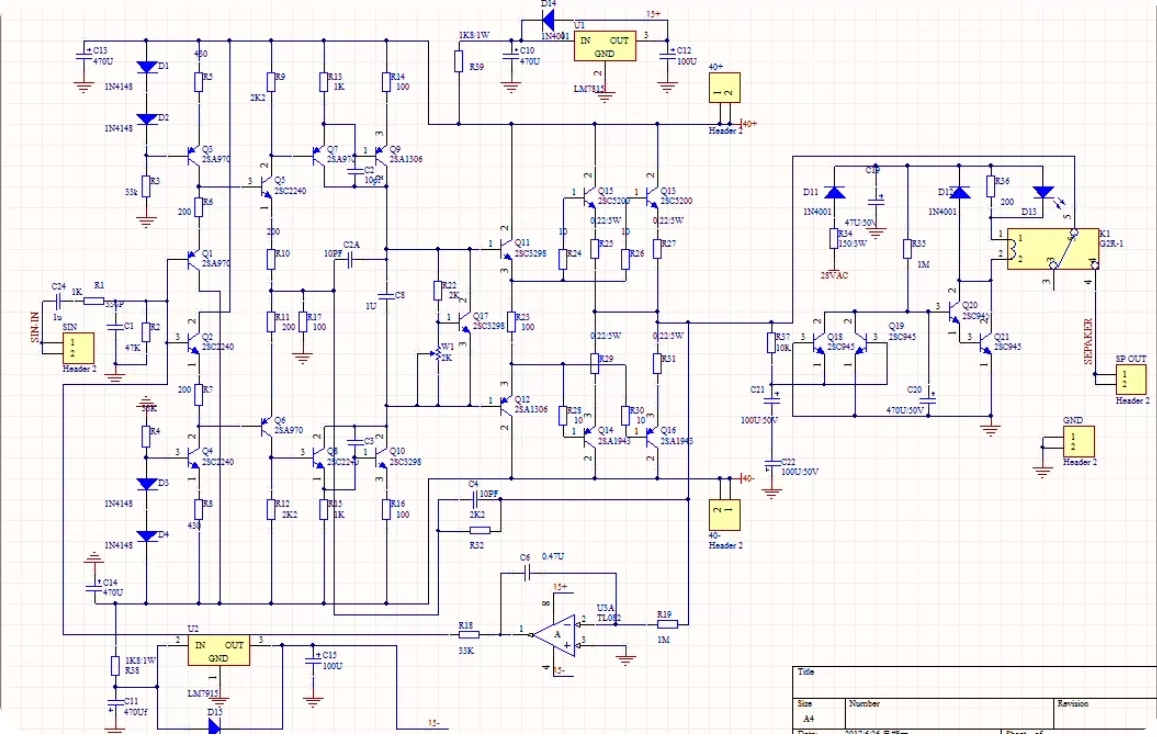

We provide schematic and BOM and brief note of adjustment to buyers by EMAIL.

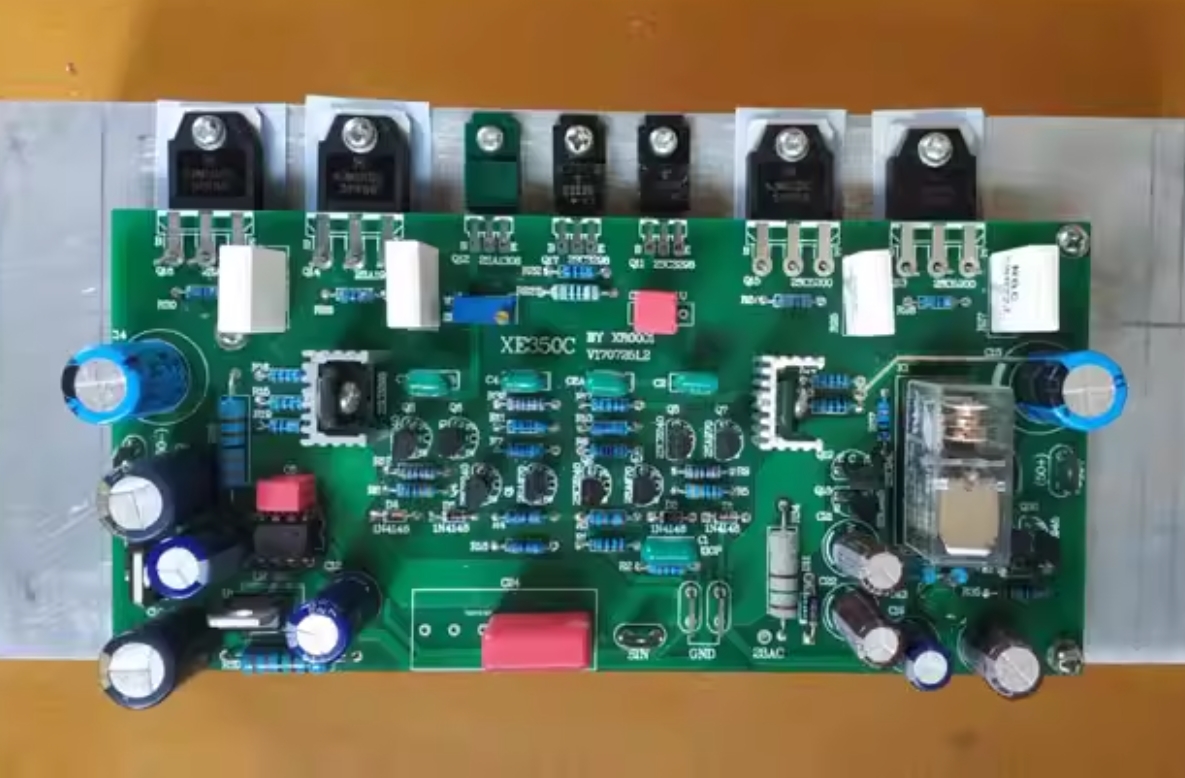

The picture of the assembled board is for builder's reference.
|

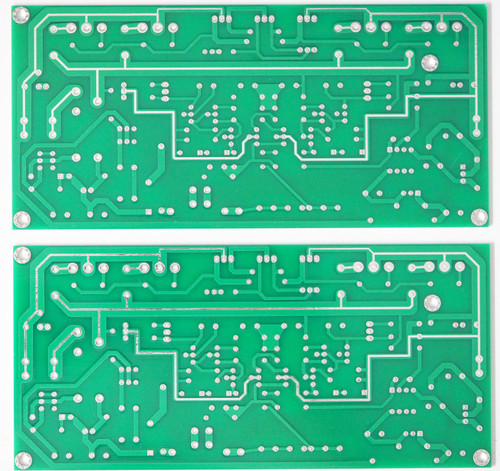

Accuphase E-350 current feedback DC servo power amp PCB 2 pieces
- Brand:
- Unbranded/Generic
- MPN:
- Does Not Apply
$13.49
