SE MOSFET full balanced 100W class A amplifier PCB 1 set 5 pcs based on alephX !

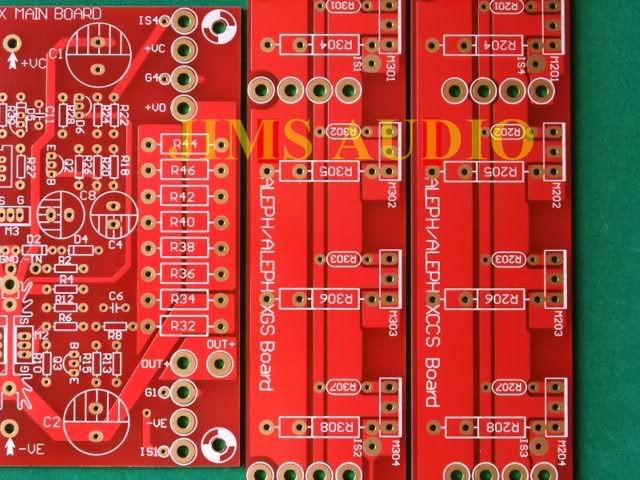

This is a kit of bare PCBs ( five pieces )of a super high-end power amplifier based on the well proven Aleph-X. The power amplifier takes minimalist approach, features a single-ended MOSFET class A output stage, loaded by current source for best linearity and dynamic performance. The power amplifier works in a balanced mode for best distortion characteristic too. When implemented in the appropriate manner, the amplifier can deliver non-compromised 100W of power at class A operation !

The kit of PCBs in this listing is for ONE channel only. For stereo application two sets are needed.

Recommended supply voltage : +/-22V to +/-25V, 10A per channel

We provide schematic and part list by email ( attached to the shipment notice on the item posting day).



Main PCB dimension : 127mm x 127mm.

Daughter PCB( 4 pieces) dimension : 44mm x 154mm



PCB thickness : 2mm, 2 oz ( 75um thickness !!) copper deposition.





We do air shipping worldwide at US$8.50.
