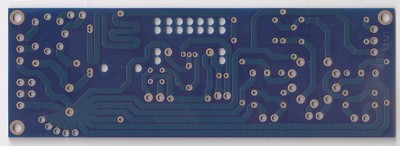

This is the PCB of a tube preamplifier. The design takes a simplistic approach, using one 6DJ8 ( or 6N11) for single stage amplification. Most of the famous preamplifier also use one stage to achieve superb sonic performance.
On this board tube rectification is also included.

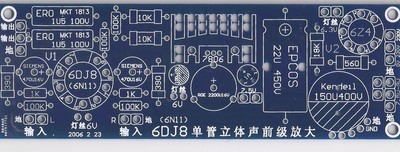

We provide schematic ( the schematic below has no component value. The actual schematic has values) , part list and annotated board drawing in English to buyers by email to facilitate the assembly process.
PCB dimension: 167mm x 56cm.
PCB thickness 1.6mm.
Copper thickness : 70um( 4 times of normal thickness !).
Surface is gold plated.
Surface finishing : double-sided soldmask covered for best reliability.
We do air shipping worldwide at US$4.50.
