T-shape heatsink mounting plate for TO-3 transistors in Quad/Naim DIY !

On list is a heatsink T-shape mounting plate that is specifically to be used with TO-3 transistors. By mounting TO-3 transistors onto this mounting plate, TO-3 transistors can be then mounted onto other heatsinks, such as standard rectangular block finned heatsink for effective heat dissipation.

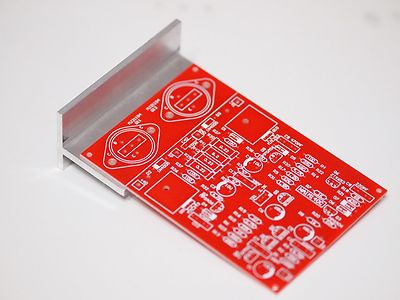

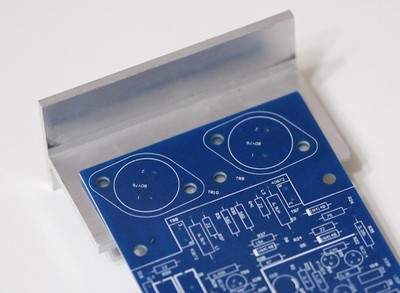

Applications of this plate such as Quad 405 and Naim 140 amplifier PCBs in our shop are shown in the pictures below. Each mounting plate can be used with one board.

This is a listing for one piece of T-shape mounting plate. NO PCB is including in this listing. The plate with the PCB in the pictures is for application reference.

Dimension :

TO-3 plate dimension is 48mm x 95mm.

The vertical plate is 45mm x 95mm.

Thickness is 3.5mm.



Air shipping cost worldwide by registered airmail is US$5.50. We welcome combined shipping.























Item Specifics
Brand : Unbranded/Generic
MPN : Does not apply
UPC : Does not apply
