80W Class AB/B Power Amplifier PCB 1 piece based on blameless architecture !

Type:
Power Amplifier
Brand:
Unbranded/Generic
MPN:
Does Not Apply
$13.29

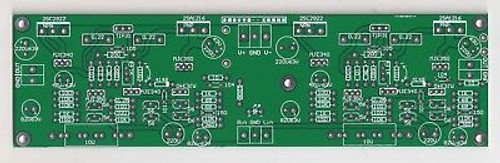

This is the bare PCB of a class AB power amplifier, based on blameless architecture for low distortion performance.

With +/-45V, about 80W output power can be delivered.


PCB dimension : 216mm x 60mm



This is a single channel amplifier PCB. Two PCBs are needed to form a stereo amplifier.


PCB thickness : 1.6mm

Tin plated surface.

We provide adjustment schematic and part list to customers by EMAIL.

We do air shipping worldwide at US$5.00.
