Borbely all FET low-noise super shunt regulator PCB one piece

Write a Review

Does Not Apply

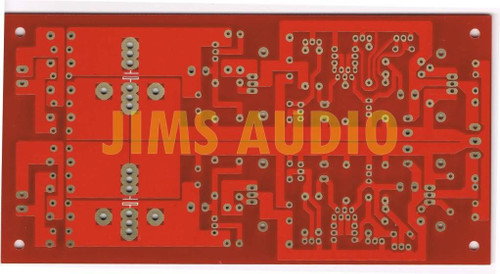

This is the PCB of a All FET low-noise super shunt regulator. The design is based on the designs of semiconductor guru, "Mr. FET", Erno Borbely. We provide schematic and part list for this PCB.


Output residue noise: Input voltage :AC 15Vx2 to 38Vx2

Output voltage :+/-12V to +/-45V

Output current :0-500mA

PCB dimension: 18cm x 9cm. PCB thickness 2mm. Super thick copper ( 2oz, 75um !!) is used, which is three times the normal thickness.
