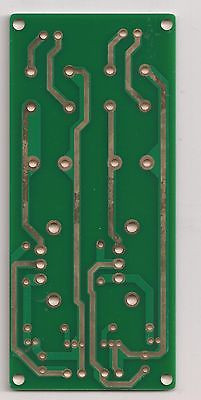

Low noise High Current dual power supply LT1083CP bare PCB 1 piece ( green) !

Write a Review

Brand:
Unbranded/Generic
MPN:
Does Not Apply
$8.19
This listing is a bare board of our very popular LT1083CP low noise power supply kit. LT1083 family has been famous as a low noise low impedance design being used in audio circuitry like DAC circuitry , filament powering, to name a few.

The board contains two individual power supply circuits, so that when appropriately implemented, the power supply can be configured as either a single voltage power supply or dual rail supply for various applications. The adjustable voltage range is from +5V to +30V( single rail) and +/-5V to +/-30V( dual rail).

The board has space reserved for two capacitors of lead pitch 10mm and diameter 25mm.

Operating voltage : 5VAC to 25VAC





PCB dimension : 131mm x 57mm.



Board thickness : 2mm .

Board color : Green.

PCB finishing : 75um copper thickness with gold plating surface. Both side has solder mask coated for maximum durability.





We do air shipping worldwide at US$4.50.
