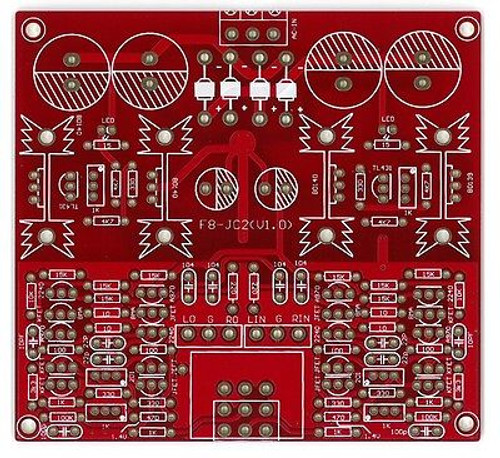

This is the PCB of a stereo preamplifier based on the legendary JC-2. The output stage is enhanced with JFET output. To stay with original design, users can still pick the signal out from the output on the left side of the red dash line. The amplifier section is fed with shunt regulator to guarantee good sound.
PCB dimension: 113mm x 93mm.
PCB thickness 1.6mm.
Operating voltage : AC input 16Vx2 to 20Vx2.
We provide schematic, part list and adjustment instruction to buyers via EMAIL.
