High voltage PSU board for tube preamplifier Matisse big board v2 bug fixed !

Write a Review

Brand:
Unbranded/Generic
MPN:
Does Not Apply
$14.99

Note on 17 March 2016 : This is a relaunch of this board. There was a transistor footprint problem and it was solved in this version.

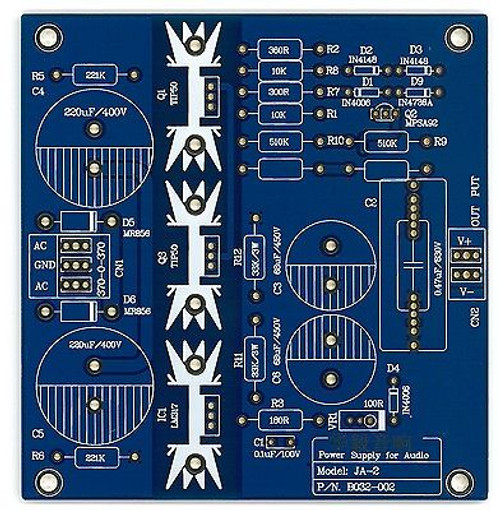

This is the bare PCB of a DC high voltage regulator, intended for tube preamplifier application. The circuit is based on the power supply circuit of Matisse of UK ( which is already out of business).

AC input : 360Vx2 AC. ( from the secondary of an appropriate transformer)

DC output : 110VDC to 280VDC.

Board Thickness : 2.0mm

Dimension : 120mm x 124mm

We provide schematics and part list to buyers by EMAIL.

We do air shipping worldwide at US$6.00.
